BMW E6x Night Vision Independent controller
BMW E6x Night Vision Independent controller is designed for stand-alone use of night vision systems installed in the BMW series E6x.
Guarantee Safe Checkout
Description
Description
BMW E6x Night Vision Independent controller is designed for stand-alone use of night vision systems installed in the BMW series E6x.

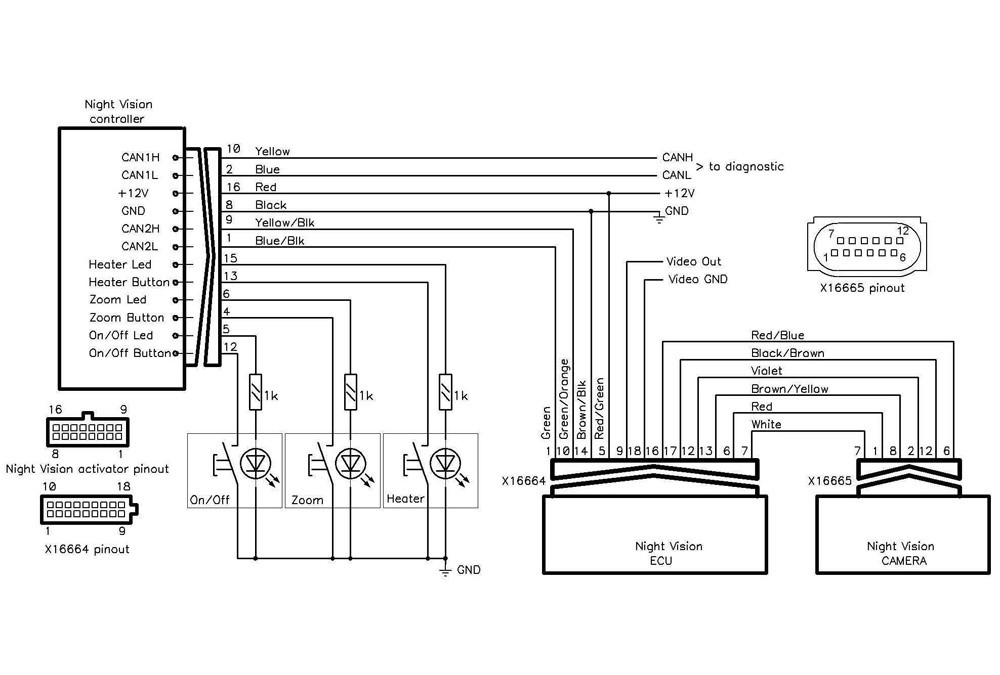

The module contains two tires CAN: CAN1 (yellow – CANH, blue – CANL) and CAN2 (Yellow / Black – CANH, Blue / Black – CANL), inputs “Heater Button”, Zoom Button “,” On / Off Button “, outputs “Heater Led”, Zoom Led “,” On / Off Led “. Night vision system is connected to a power source and to the bus CAN2 module according to Figure 1. Controls and indicators are connected to the module on the circuit shown in Figure 1. CAN1 bus module is designed for connecting diagnostic equipment.
